AHU - High-efficiency steam distributors

DP******RH

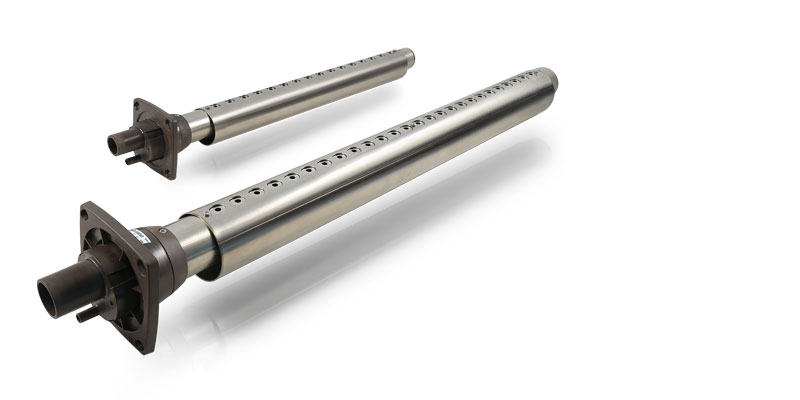

AHU - High-efficiency steam distributors
  • General characteristics

    These new steam distributors complete the current product range, thus providing a response to all customer needs, also in terms of energy savings.

    The air cushion, acting as an insulator between the steam pipe and the outer jacket, reduces heat exchange between the hot steam inside the distributor and the lower-temperature air in the duct/AHU: this reduces condensation by at least 20%.

    Just like in the other versions, excellent steam distribution is ensured by the modular construction, making it possible to virtually cover all duct/AHU widths and exploit as much air flow as possible.

    The lengths range from 350 mm to 2050 mm, in 30 mm or 40 mm diameters.





Documentation

Commercial

  • Product guide
    Code Description Language Date * Release
    Code +800004031

    Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Language ENG

    Date 01/07/2021

    Release 1.0

    Code +800004030

    Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    Language ITA

    Date 01/07/2021

    Release 1.1

  • Brochure
    Code Description Language Date * Release
    Code +3000224IT

    Description Educational - Utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    Language ITA

    Date 01/06/2021

    Release 1.0

    Code +3000224EN

    Description Educational - Make the best use of HVAC/R application technologies and systems

    Language ENG

    Date 01/06/2021

    Release 1.0


Images

  • High resolution images
    Code Description Language Date * Release
    Code PH18LDP301-linear-distributor

    Description CAREL-AHU - High-efficiency steam distributors-Steam distribution system-Isothermal Humidifier

    Language

    Date 01/07/2021

    Release R.0
