Cloudgate
General characteristics

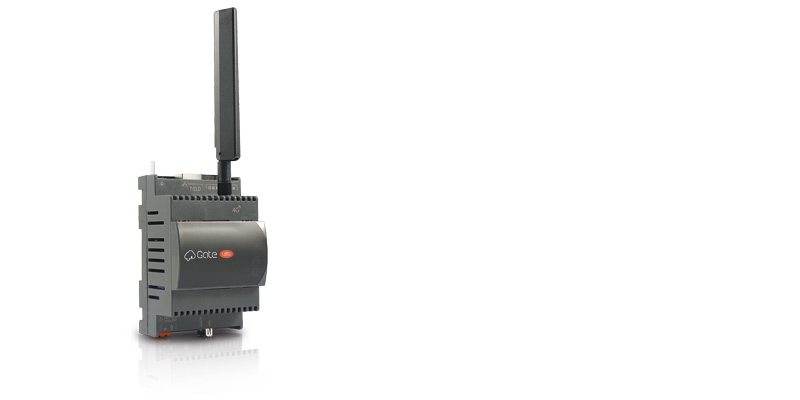

CloudGate is CAREL’s new family of IoT gateways to enable monitoring and tERA platform services for HVAC/R systems with up to 10 units.
Compact, standard installation inside an electrical panel and a local LED interface with immediate indication of communication status make Cloudgate easy to install in the field, without the need for experts in connectivity devices.
Cloudgate is available in four different models, depending on the connectivity available for the communication with the tERA service. These options make it possible to use Cloudgate and consequently the remote control features offered by tERA services in a large number of places and geographic areas.
The web pages accessible via the Cloudgate Ethernet port provide access to system information and advanced network settings, as well as the possibility to carry out advanced diagnostics on the gateway’s operating status locally.
-
Plus
Compact product
Developed in a 4 DIN module format with connection via plug-in terminals, used to install the gateway inside the electrical panel quickly and occupying as little space as possible.
Interface
Interface with eight front LEDs showing gateway operating status and radio signal strength, so as to understand the gateway’s communication status without requiring additional external instruments.
Plug&play installation
Without the need to contact the network infrastructure manager in the building where it is installed, both in the mobile versions (2G/4G), which come with an already-activated built-in Internet connection, and the WiFi version, featuring the WPS function to connect to the building’s network without needing to know the building’s router configuration.
Security
Data and connection security via a VPN (Virtual Private Network) on the models that communicate via the mobile network, and the HTTPS protocol for the Ethernet and Wi-Fi models.
Documentation
Technical
-
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +0500150IE Description CloudGate: Istruzioni di montaggio / Assembly procedure Language ENG ITA Date 24/07/2023 Release 1.4 Code +0500150TR Description CloudGate: Montaj prosedürü / Assembly procedure Language ENG TUR Date 24/07/2023 Release 1.4 Code +0500150RU Description CloudGate: Инструкции по монтажу / Assembly procedure Language ENG RUS Date 24/07/2023 Release 1.4 Code +0500150FD Description CloudGate: Instructions de montage / Montageanleitung Language FRE GER Date 24/07/2023 Release 1.4 Code +0500150EZ Description 云网关：组装程序 / CloudGate: Assembly procedure Language CHI ENG Date 07/06/2022 Release 1.3 Code +0500151ML Description Cloudgate Electrical panel assembly instruction Language ENG Date 28/04/2021 Release 1.0
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000224FR Description Educational - Programme de formation CAREL pour une utilisation optimale des technologies et des systèmes dans les applications HVAC/R Language FRE Date 15/12/2023 Release 2.0 -
Other related documentation
* Entries are ordered by date
Code Description Language Date * Release Code +3000224EN Description Educational - MakeCAREL’s program of training courses to make the best use of HVAC/R application technologies and systems Language ENG Date 13/03/2024 Release 2.1 Code +3000224IT Description Educational - Programma corsi di formazione CAREL per utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R Language ITA Date 13/03/2024 Release 2.1 Code +800004030 Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico Language ITA Date 05/04/2023 Release 1.2 Code +800004031 Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving Language ENG Date 05/04/2023 Release 1.2
Images
-
High resolution images
* Entries are ordered by date
Code Description Language Date * Release Code PH21LGT302-cloud-gate-control-panel-open Description CAREL cloudgate control panel open - Gateway IoT - Remote management and monitoring system Language ALL Date 01/06/2022 Release R.0 Code PH21LGT301-cloud-gate-control-panel Description CAREL cloudgate control panel - Gateway IoT - Remote management and monitoring system Language ALL Date 01/06/2022 Release R.0 Code PH19LGT304-cloud-gate-wifi Description CAREL cloudgate wifi - Gateway IoT - Remote management and monitoring system Language ALL Date 01/06/2022 Release R.0 Code PH19LGT305-cloud-gate Description CAREL cloudgate - Gateway IoT - Remote management and monitoring system Language ALL Date 01/06/2022 Release R.0 Code PH19LGT301-cloud-gate Description CAREL cloudgate 2G - Gateway IoT - Remote management and monitoring system Language ALL Date 01/06/2022 Release R.0 Code PH19LGT303-cloud-gate-4G Description CAREL cloudgate - Gateway IoT - Remote management and monitoring system Language ALL Date 11/03/2022 Release R.0
