AHU - Steam distributors

DP***D**R*
AHU - Steam distributors
  • General characteristics

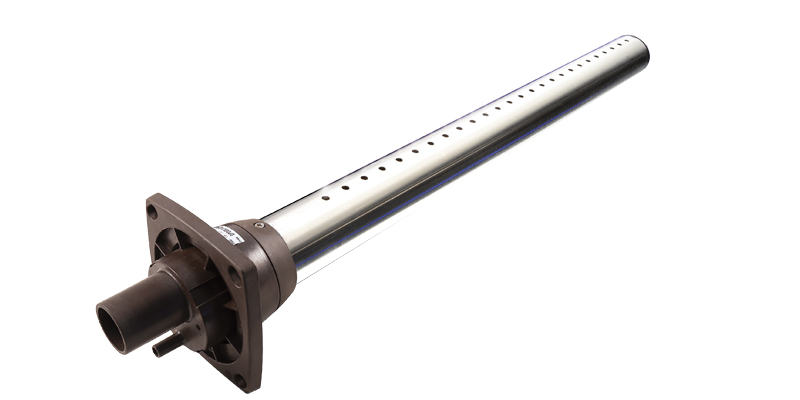

    The wide range of linear steam distributors for ducts in the “DP” series is made up of perforated stainless steel pipes supported by a fastening bracket made from Ryton®.

    This material combines excellent mechanical characteristics with extraordinary resistance to high temperatures.

    The new fastening bracket allows the steam distributor to be fastened vertically to a wall, guaranteeing the correct incline of the distributor for draining condensate.

    The stainless steel linear steam distributors are available in 3 different diameters (35, 45 and 60 mm), which couple respectively to the 22, 30 and 40 mm diameter steam hoses used on the entire range of CAREL humidifiers.

    These distributors are designed to release steam in a uniform manner along the entire length, so as to minimise non-wetting distance.





Documentation

Technical

  • Technical Leaflets
    Code Description Language Date * Release
    Code +050001110

    Description DP***D**R0 / DP***D**RU - Distributori lineari di vapore / Linear steam distributors

    Language ENG  ITA

    Date 27/03/2018

    Release 1.2


Commercial

  • Product guide
    Code Description Language Date * Release
    Code +800004031

    Description Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Language ENG

    Date 01/07/2021

    Release 1.0

    Code +800004030

    Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    Language ITA

    Date 01/07/2021

    Release 1.1

  • Brochure
    Code Description Language Date * Release
    Code +3000224EN

    Description Educational - Make the best use of HVAC/R application technologies and systems

    Language ENG

    Date 01/06/2021

    Release 1.0

    Code +3000224IT

    Description Educational - Utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    Language ITA

    Date 01/06/2021

    Release 1.0
