Steam blowers

VSDU* , VRDX*

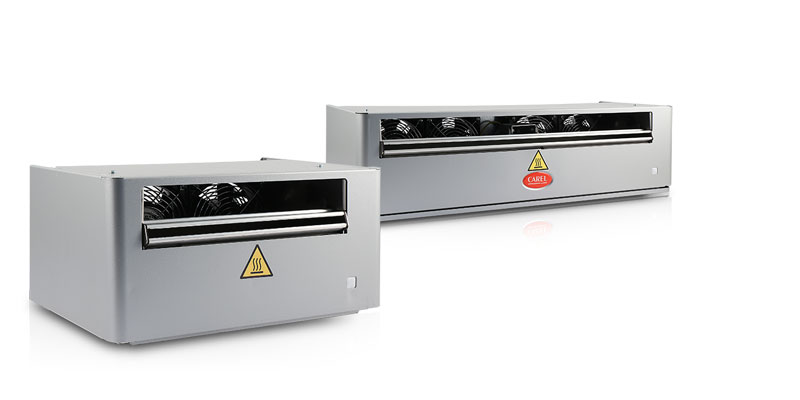

Steam blowers
  • General characteristics

    The steam blowers for rooms (VSDU0A0003) are suitable for humidifiers up to 18 kg/h. The steam blower can be fitted directly onto the humidifier, or in a remote position. In the latter case, a support is required for mounting the blower (VSDBAS0001), as well as a steam hose to connect the blower to the humidifier. The steam blower works in ON/OFF mode, and is controlled by a temperature device that is activated when steam is produced.

    For humidifiers larger than 18 kg/h, the VRDXL00001 steam blowers are available, with 230 Vac power supply; these are designed for installation separately from the humidifier, and require two 40 mm diameter steam hoses.

    The new generation of blowers guarantees:

    • a steam absorption distance of around one metre, allowing the unit to be positioned in complete safety;
    • a range of steam production modulation from 0 to 100%;
    • backward compatibility with existing installations.





Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +030222190

    Description VSDU0A0003 - Testata ventilante / Steam blower

    Language ENG  ITA

    Date 11/02/2021

    Release 1.4

    Code +030222191

    Description VSDU0A0003 - Tête de ventilation

    Language FRE

    Date 11/02/2021

    Release 1.4

    Code +030222192

    Description VSDU0A0003 - Dampfgebläse

    Language GER

    Date 11/02/2021

    Release 1.4

    Code +030222195

    Description VRDXL00001 - Testata ventilante / Steam blower

    Language ENG  ITA

    Date 11/02/2021

    Release 1.4

    Code +030222196

    Description VRDXL00001 - Tête de ventilation

    Language FRE

    Date 11/02/2021

    Release 1.4

    Code +030222197

    Description VRDXL00001 - Dampfgebläse

    Language GER

    Date 11/02/2021

    Release 1.4

  • BIM files
    Code Description Language Date * Release
    Code BIM files Steam blower

    Description

    Language ALL

    Date 08/07/2020

    Release R0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000224IT

    Description Educational - Utilizzare nel modo migliore tecnologie e sistemi delle applicazioni HVAC/R

    Language ITA

    Date 01/06/2021

    Release 1.0

    Code +3000224EN

    Description Educational - Make the best use of HVAC/R application technologies and systems

    Language ENG

    Date 01/06/2021

    Release 1.0
