pLDPRO

PLD*
pLDPRO
pLDPRO pLDPRO


  • General characteristics

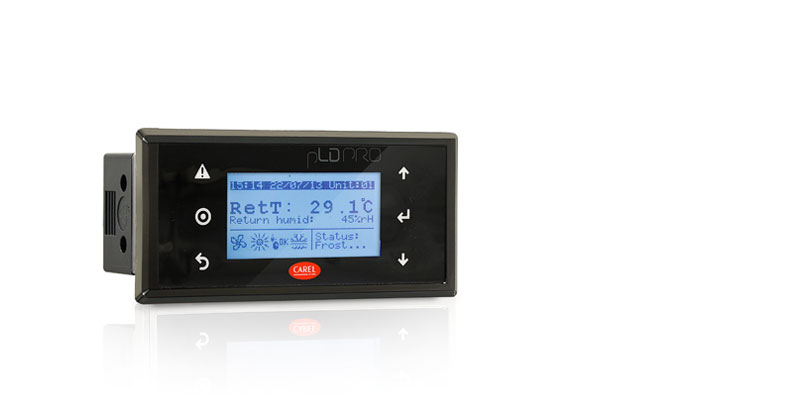

    pLDPRO is a new compact LCD in the pCO family, completely compatible with all the software and hardware applications developed for the pGD1, featuring 132x64 pixel resolution. pLDPRO has been designed to meet the needs of applications that require an LCD that is compact in size, yet can at the same time provide users a complete set of information, with a clear and customisable layout typical of applications developed using programmable LCDs, but not possible on 7-segment LED displays.
    The pLDPRO LCD can display icons (defined when developing the application program) and manage international fonts in two sizes, provides six buttons to navigate through the screens, and an audible signal using a buzzer. Connection to the pCO controller is available over the RS485 network using the pLAN protocol.



Documentation

Technical

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050001840

    		 Description pLDPRO PLD**GFP00 Interfaccia utente / User interface

    		 Language ENG  ITA

    		 Date 16/12/2013

    		 Release 1.2


Images

  • High resolution images
    * Entries are ordered by date
    Code Description Language Date * Release
    Code PH13LPL301-pLD-PRO

    		 Description pLDPRO-CAREL-TerminalsUnits-Terminals

    		 Language ALL

    		 Date 01/09/2021

    		 Release R.0
