T and H sensors - compact

DPR*

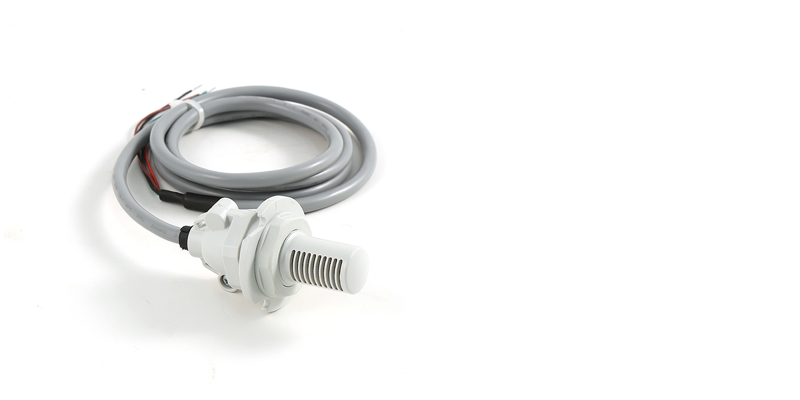

T and H sensors - compact

  • General characteristics

    The compact probe is used when temperature and humidity need to be measured in the HVAC sector, and in particular in the following applications:

    • Air handling units;
    • Air-to-air heat recovery units;
    • CRAC units (Computer room air conditioning units), both perimeter and In-row;

    It is fitted with an NTC temperature sensor 10K@25°C β=3435 and humidity sensor with 0.5-4.5V output.
    The casing guarantees IP40 protection and is designed for panel mounting or fastening using the ring nut provided.
    Available with 1 m and 3 m long cables.



Documentation

Technical

  • 2D/3D drawings
    * Entries are ordered by date
    Code Description Language Date * Release
    Code 2d-3d Compact temperature and humidity sensor

    		 Description 2D-3D drawings

    		 Language ALL

    		 Date 08/03/2021

    		 Release R0

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050000585

    		 Description Sensore compatto temperatura e umidità / Compact temperature and humidity sensor

    		 Language ENG  ITA

    		 Date 21/07/2016

    		 Release 1.2


Commercial

  • Other related documentation
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +800004030

    		 Description Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    		 Language ITA

    		 Date 05/02/2025

    		 Release 1.3
