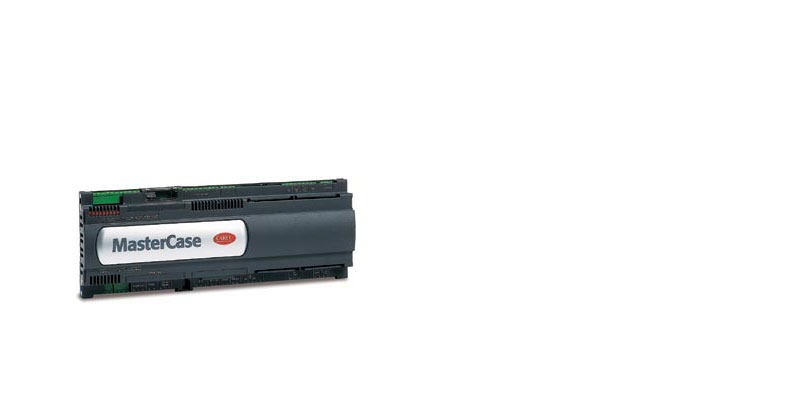

MasterCase

MGE*
MasterCase

  • General characteristics
    The motherboard, which contains the microprocessor, featuring advanced electronic technology (MGE® technology), and the "power" part with the relay outputs.
    The I/O consist of 3 analogue inputs for NTC temperature probes (plus 1 NTC and 1 ratiometric pressure probe in the version for electronic valves), 5 programmable digital inputs, 7 relay outputs, 2 of which auxiliary that can be configured as desired.
    The powerful software embedded in MasterCase allows complete and precise management of all the types of refrigeration cabinets, as well as considerable energy savings. Each MasterCase can be configured either as the Main or as a Secondary for the creation of a local network for the management of multi-evaporator utilities (multiplexed cabinets) allowing the synchronisation of defrosts, the sharing of the values read by the probes, as well as the copying of the programmed parameters from the Main to the Secondary (download).
    In the MasterCase version for electronic valves (MGE0000020), the driver card for the electronic valve is soldered directly onto the motherboard


Documentation

Technical

  • Manuals
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +030220221

    		 Description MasterCase

    		 Language ENG

    		 Date 30/10/2006

    		 Release 1.2

    Code +030220220

    		 Description MasterCase

    		 Language ITA

    		 Date 30/10/2006

    		 Release 1.2

    Code +030220223

    		 Description MasterCase

    		 Language GER

    		 Date 30/01/2006

    		 Release 1.2

  • Technical Leaflets
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +050000190

    		 Description MGE0000010/MGE0000020 - MasterCase

    		 Language ENG  GER  ITA

    		 Date 01/08/2006

    		 Release 1.4

    Code +050000191

    		 Description MGE0000010/MGE0000020 - MasterCase

    		 Language FRE  POR  SPA

    		 Date 01/08/2006

    		 Release 1.4


Commercial

  • Brochure
    * Entries are ordered by date
    Code Description Language Date * Release
    Code +302240373

    		 Description Retail sistema...the one solution

    		 Language GER

    		 Date 09/06/2010

    		 Release 4.0

    Code +302240370

    		 Description Retail Solutions... the one solution

    		 Language IND

    		 Date 09/10/2006

    		 Release 4.0

    Code +302240371

    		 Description Retail sistema...the one solution

    		 Language ENG

    		 Date 09/10/2006

    		 Release 4.0

    Code +30C239431

    		 Description 陈列柜和冷库的应用 解决方案

    		 Language CHI

    		 Date 01/10/2006

    		 Release 1.0
