  • General characteristics

    Heosbox is a condensing unit for waterloop applications entirely engineered and manufactured by CAREL.
    Heosbox incorporates all of the features of the Heos solution, starting with the controller and the components for continuous modulation:
    • BLDC compressors. DC technology allows greater efficiency through permanent magnet brushless motors, the widest range of modulation (25-100%), high reliability due to a reduction in electrical and mechanical stress, low noise and extremely compact dimensions. Both vertical and horizontal solutions are available, with a wide range of brands and performance.
    • DC drivers. CAREL drivers for Heos applications feature high electrical efficiency and reliability of both the driver and the entire solution, thanks to perfect integration with the system (envelope control, safe torque off, crankcase heater...), as well as electromagnetic compatibility . Class B firmware is available, with integrated protection and consequent savings in installation costs.
    • Electronic expansion valve with stepper motor. Operation is managed perfectly in synch with the variable-speed compressor, the evaporation temperature can be controlled continuously to ensure efficiency in all operating conditions. The use of electronic valves also allows preventive and alarm monitoring actions, for greater reliability of the entire solution.
    • Heos controller. All-in-one solution for:
        - cabinet temperature and superheat control
        - compressor management (envelope, COP calculation, oil recovery procedures)
        - condensing stage control
        - lights, defrosts, fans and alarms

    Heosbox is available for R448A/R449A, R410A synthetic refrigerants, with both CE and UL certification. Capacities up to 10 kW in MT conditions (-10°C/40°C) and 3.5 kW in LT conditions (-30°C/40°C) to satisfy a wide range of applications.
    Performance combined with ease of use thanks to the default pre-configuration for immediate use.

    Heosbox is also supplied with integrated services developed specifically for this solution, which include remote monitoring, data analysis tools and advanced algorithms for predictive maintenance.

  • Plus

    Heos solution available

    Faster time-to-market for early adopters.

    Quality and reliability

    All of the experience and know-how available in a 100% Carel solution

    One stop shop

    CAREL as the sole supplier and partner

    Usability

    Pre-configured and ready-to-use unit.

    Local and remote supervision

    Dedicated advanced IOT services included in the offering.



    All the unique features and advantages of Heos technology:

    Continuous system modulation

    Variable speed compressors (BLDC) and electronic expansion valves with stepper motor.

    Energy efficiency

    The decentralised approach and continuous modulation make it possible to adapt operation perfectly to the demands of the cabinet in all conditions. Synchronisation of control actions and possibility to read COP in real time.

    Maximum food preservation quality

    Continuous modulation of the compressor and EEV electronic valves ensures excellent temperature and humidity stability in the cabinets.








Documentation

Technical

  • Manuals
    Code Description Language Date * Release
    Code +0300089IE

    Description HEOS BOX Manuale d’uso/User manual

    Language ENG  ITA

    Date 06/09/2021

    Release 1.3

    Code +0300097EF

    Description Heosbox Assembly instructions, including information for use and maintenance North America version Instructions pour l’assemblage, avec des informations relatives à l’utilisation et à l’entretien Versions North America

    Language ENG  FRE

    Date 17/06/2021

    Release 1.0


Commercial

  • Brochure
    Code Description Language Date * Release
    Code +3000207IT

    Description Heosbox L’avanguardia della tecnologia per i tuoi cabinet semi plug-in

    Language ITA

    Date 08/09/2021

    Release 1.0


Images

  • High resolution images
    Code Description Language Date * Release

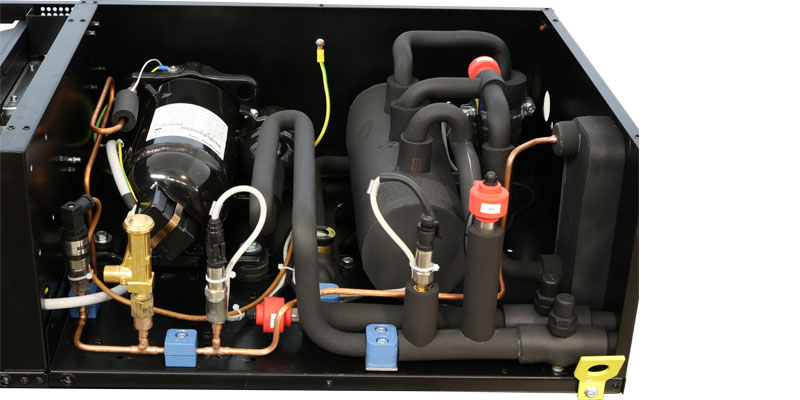

    Code PH20DUP304-heosbox-detail

    Description CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    Language ALL

    Date 17/09/2021

    Release R.0

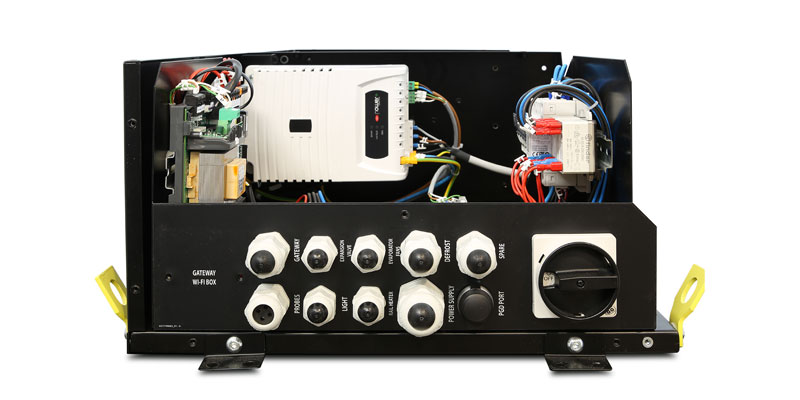

    Code PH20DUP302-heosbox-detail

    Description CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    Language ALL

    Date 17/09/2021

    Release R.0

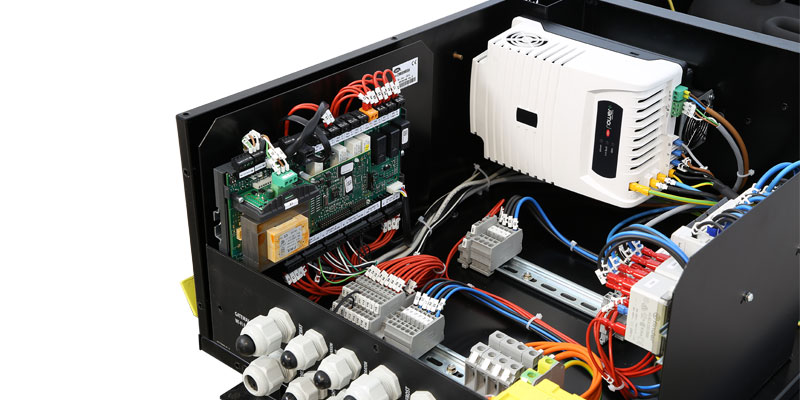

    Code PH20DUP301-heosbox-detail

    Description CAREL-Plug-in and Semi plug-in-Heos-Heosbox HFC

    Language ALL

    Date 17/09/2021

    Release R.0

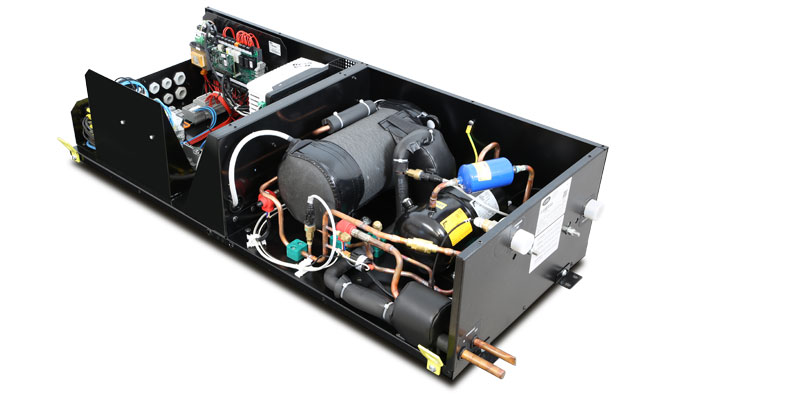

    Code PH20LUP307-heosbox-open
