easy way
EW**
General characteristics
The Easyway system comprises four elements: - The Access Point, which allows communication between devices using the CAREL RS485 protocol (pCO sistema, PlantVisor) and the EasySet terminals, EasyReader sensors or other repeaters.
- The EasySet terminal, which measures the room temperature and - depending on the model - humidity, is used to set certain parameters, such as the temperature and humidity set points, the operating mode and time bands, and send the data to the Access Point.

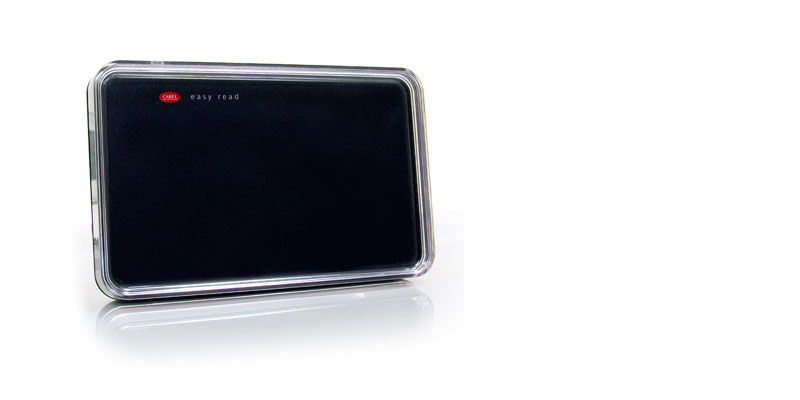

- The EasyRead sensor, which sends the Access Point the temperature and humidity readings, depending on the chosen model.
- The Repeater, which is used to communicate with the terminals and sensors, or other repeaters, and send the data to Access Points located too far away to receive the signal. The Repeater therefore relays the signal between devices located in the room and the Access Point, when distances are too high for correct reception.
The "Easyway" system can be marketed in all European Union countries. For all other countries, check the legislation in force with regards to the radio specifications.
Documentation
Technical
-
Manuals
* Entries are ordered by date
Code Description Language Date * Release Code +030220841 Description easy way aria Language ENG Date 27/07/2009 Release 1.1 Code +030220840 Description easy way aria Language ITA Date 27/07/2009 Release 1.1 Code +030220845 Description easy way acqua Language ENG ITA Date 26/11/2008 Release 1.0 -
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +050001311 Description +050001311 - rel. 2.0 date 24.02.2009 Access Point, communication with EasyWay system wireless Terminals/Sensors Language ENG FRE GER RUS SPA Date 24/02/2009 Release 2.0 Code +050001310 Description Access Point, communication with EasyWay system wireless Terminals/Sensors Language ENG ITA Date 24/02/2009 Release 2.0 Code +050001318 Description Повторитель радиосигналов между точкой доступа и системой беспроводных датчиков EasyWay / Radio signal repeater between Access Point and EasyWay system wireless Terminals/Sensors Language ENG RUS Date 13/09/2007 Release 1.0 Code +050001320 Description easy read sensore wireless di temperatura ed umidità/easy read wireless temperature and humidity sensor Language ENG ITA Date 13/09/2007 Release 1.0 Code +050001315 Description Ripetitore di segnale radio tra Access Point e Terminali/Sonde wireless del sistema Easy Way / Radio signal repeater between Access Point and EasyWay system wireless Terminals/Sensor Language ENG ITA Date 13/09/2007 Release 1.0
Commercial
-
Brochure
* Entries are ordered by date
Code Description Language Date * Release Code +3000034EN Description rTM SE system wireless transmission for RS485 Modbus® serial communication Language ENG Date 11/02/2011 Release 1.0 Code +3000034IT Description rTM SE sistema trasmissione wireless per comunicazione seriale RS485 Modbus® Language ITA Date 11/02/2011 Release 1.0 Code +302239481 Description easy way: Wireless integrated solutions for climatic optimized control Language ENG Date 01/10/2006 Release 1.0 Code +302239480 Description Easy Way: Soluzioni integrate wireless per il controllo climatico ottimizzato Language ITA Date 01/10/2006 Release 1.0
