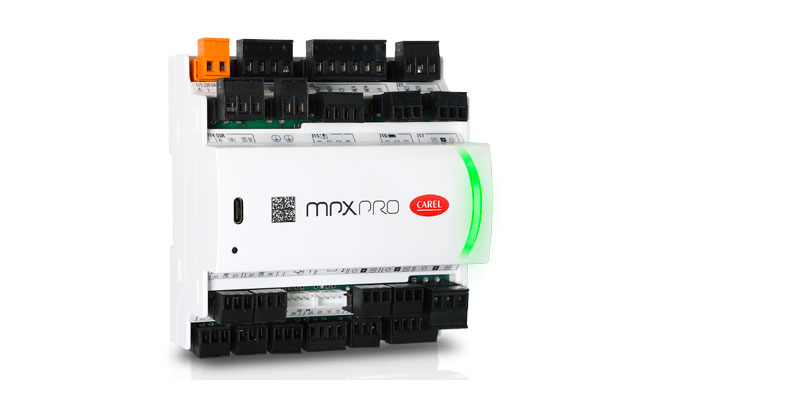

MPXPRO
General characteristics
The new MPXPRO extends and improves the range of MPX family controllers, representing the most advanced solution for the control of commercial refrigeration units, from stand-alone cabinets with variable-speed compressors, to remote cabinets and cold rooms with electronic expansion valves. Designed on a flexible and scalable platform, the new MPXPRO responds to the increasingly complex needs of the food retail business, combining high performance and energy efficiency.
By integrating current sensors that directly monitor electrical loads, any anomalies can be identified quickly, allowing a prompt and reliable service response. These can also provide providing detailed monitoring of overall energy consumption for benchmarking activities and energy performance optimisation.
In addition to complete control of the unit, the new MPXPRO stands out for the integration of cutting-edge technologies such as NFC and Bluetooth™ (BLE) wireless connectivity, simplifying interaction with mobile devices and facilitating configuration and commissioning via dedicated apps.
The uniform aesthetics across the entire range, the ease of use and the scalability of the features, combined with the efficiency ensured by the ability to manage modulating devices (fans, heaters, compressors), make the new MPXPRO a strategic element in modern, high-performance, and fully-integrated refrigeration systems.
-
Plus
The new MPXPRO represents the best performing solution for the control of high-end food retail units.
Compact dimensions
In just six DIN modules, it is the most compact controller in its category, ideal for optimising space and performance without compromise.
Energy monitoring and intelligent prevention
Thanks to three built-in current sensors, the controller monitors the power consumption of loads in real time, promptly detecting any anomalies and ensuring reliable and proactive control.
One solution for multiple needs
One single part number for the direct control of electronic expansion valves, both bipolar stepper (with built-in Ultracap) and PWM, adapting to all application requirements.
Cutting-edge connectivity
Up to two independent RS485 serial ports, NFC and Bluetooth™ connectivity included in the user interface for easy interaction with apps, and USB-C port for quick setup and upgrades.
Advanced versatility
A versatile I/O to adapt to any need for the management of refrigeration units:
- up to eight analogue inputs, with the possibility of configuring up to three of them as active probes;
- three dedicated digital inputs (up to a maximum of five depending on the number of analogue inputs used);
- version with five or six digital outputs;
- up to four modulating 0-10 V / PWM outputs for controlling anti-sweat heaters/evaporator fans or variable-speed compressors (VCC).
Documentation
Technical
-
2D/3D drawings
* Entries are ordered by date
Code Description Language Date * Release Code C806_MSC_MPXPRO_2D_H.zip Description 2D-3D drawings Language ALL Date 15/04/2025 Release R.0 Code C806_MSC_MPXPRO_2D_V.zip Description 2D-3D drawings Language ALL Date 15/04/2025 Release R.0 Code C806_MSC_MPXPRO_H.zip Description 2D-3D drawings Language ALL Date 15/04/2025 Release R.0 Code C806_MSC_MPXPRO_V.zip Description 2D-3D drawings Language ALL Date 15/04/2025 Release R.0 -
Technical Leaflets
* Entries are ordered by date
Code Description Language Date * Release Code +0500196ML Description Technical leaflet - MPXPRO - Mid Size Controller Language ENG Date 15/04/2025 Release 1.0 Code +0500196ML_ITA Description Foglio tecnico - MPXPRO - Mid Size Controller Language ITA Date 15/04/2025 Release 1.0 Code +0500197ML Description MPXPRO - Electronic controller for centralized commercial refrigeration applications Language ENG Date 15/04/2025 Release 1.0 Code +0500197ML_ITA Description MPXPRO Controllo elettronico per applicazioni di refrigerazione commerciale centralizzate Language ITA Date 15/04/2025 Release 1.0
Images
-
High resolution images
* Entries are ordered by date
Code Description Language Date * Release Code PH25LMX301-MPXPRO-Vertical-Connectors Description MPXPRO - Controller for cabinets and cold rooms Language ALL Date 15/04/2025 Release R.0 Code PH25LMX307-MPXPRO-Vertical-Connectors-front Description MPXPRO - Controller for cabinets and cold rooms Language ALL Date 15/04/2025 Release R.0 Code PH25LMX302-MPXPRO-Horizontal-Connectors Description MPXPRO - Controller for cabinets and cold rooms Language ALL Date 15/04/2025 Release R.0 Code PH25LMX308-MPXPRO-Horizontal-Connectors-front Description MPXPRO - Controller for cabinets and cold rooms Language ALL Date 15/04/2025 Release R.0 Code PH25LMX303-MPX range Description MPXPRO - Controller for cabinets and cold rooms Language ALL Date 15/04/2025 Release R.0
